تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: ENWEI
إصدار الشهادات: CE
رقم الموديل: 4435
شروط الدفع والشحن
الحد الأدنى لكمية: 1
الأسعار: قابل للتفاوض
تفاصيل التغليف: تعبئة حالة خشبية
وقت التسليم: 15-20 أيام العمل
شروط الدفع: ر/ر
القدرة على العرض: 50 وحدة/شهر
لوحة الطاقة الشمسية: |
4*435W |
بطارية: |
8*150AH ، نوع هلام |
وحدة تحكم: |
MPPT 40A |
العاكس: |
1000W |
سارية: |
6M يدوي الصاري |
مخصصة: |
الشعار ، الكاميرا ، الضوء ، الكابل ، اللون |
البعد: |
1380*1380*2000mm |
وزن: |
حوالي 900 كجم |
لوحة الطاقة الشمسية: |
4*435W |
بطارية: |
8*150AH ، نوع هلام |
وحدة تحكم: |
MPPT 40A |
العاكس: |
1000W |
سارية: |
6M يدوي الصاري |
مخصصة: |
الشعار ، الكاميرا ، الضوء ، الكابل ، اللون |
البعد: |
1380*1380*2000mm |
وزن: |
حوالي 900 كجم |

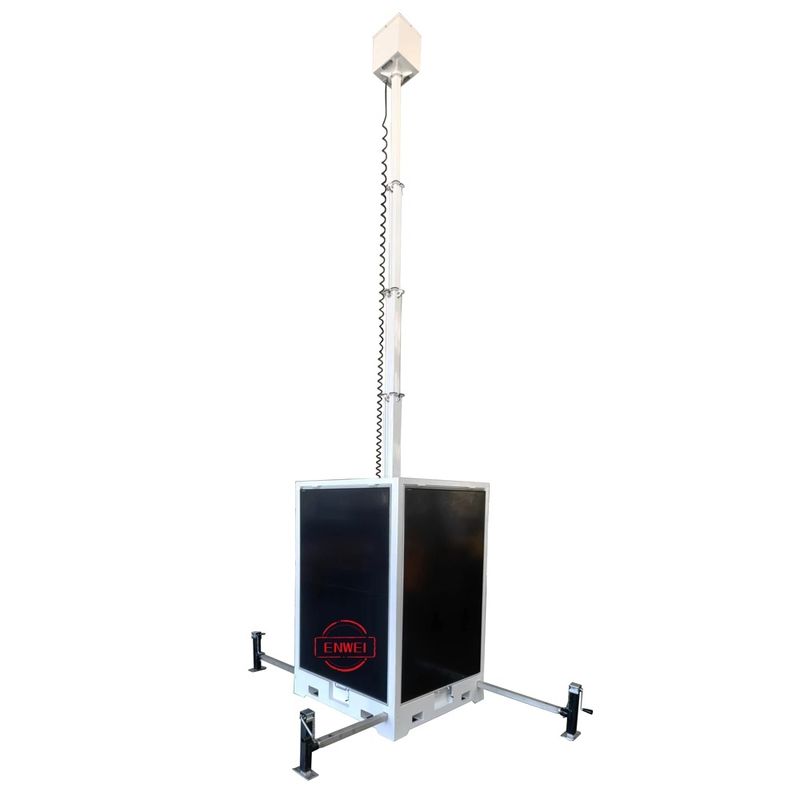

Flexible Deployment Cube Solar Surveillance Tower For 24/7 Security Solution
The Solar Mobile Surveillance Tower is a security monitoring device. It features a 6m manual mast, equipped with a CCTV mounting box and user-provided cameras, enabling wide-area monitoring.
Technical Specifications:
Solar System: 4 x 435W solar panels, 8 x 150Ah gel batteries, and a 40A MPPT controller ensure continuous power even in offline environments.
Structural Design: Cold-dip galvanizing and powder-coating for corrosion resistance, suitable for harsh outdoor environments.
Electrical Control System: 1000W inverter, charger, and LCD control panel for easy operation and reliable system performance.
Mobility and Deployment: Equipped with 4 support legs, the system provides a stable structure and can be quickly disassembled and transported.
Application Scenarios:
Construction Site Safety Monitoring, Public Facility Security, Temporary Project Security, Asset Protection in Remote Areas, Large-Scale Event Security.
Advantages:
Flexible Deployment: No external power supply required, suitable for areas with weak power infrastructure, 24/7 security solution.
Certifications: CE certified for reliable quality.
Detailed parameters:
Solar panel |
4*435W |
Battery |
8*150Ah, 12v, gel type |
Mast |
6m manual mast |
Inverter |
1000W |
Charger |
exist |
Support legs |
4 |
Controller |
MPPT 40A |
Control |
LCD panel |
Camera |
provided by customer |
Material |
cold dip galvanized and powder coated |
Certification |
CE |
Dimension |
1380*1380*2000mm |
Weight |
about 900kg |
Product images:
The solar panel can be disassembled according to customer needs and operated by the battery
Installation pictures:
delivery pictures:
Q: Who are we?
A: We are a supplier of solar tower. Our company has experience in producing high-quality mobile solar surveillance tower.
Q: Do you offer discounts for repeat or large-volume orders?
A: Yes we will offer the best discounts according to your goods quantity.
Q: Do the towers ship fully assembled, or partially dismantled?
A: The Hitch bars needs to be removed for transportation
