تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: ENWEI
إصدار الشهادات: CE
رقم الموديل: 3380
شروط الدفع والشحن
الحد الأدنى لكمية: 1
الأسعار: قابل للتفاوض
تفاصيل التغليف: حالة خشبية حاوية
وقت التسليم: 20 يوم عمل
شروط الدفع: ر/ر
القدرة على العرض: 50-80 وحدة/شهر
لوحة الطاقة الشمسية: |
3*380W ، السيليكون أحادي البلورة |
باتيري: |
4*200AH ، DC12V |
سارية: |
7m الكهربائية |
وحدة تحكم: |
MPPT 60A ، 95 ٪ |
قاد: |
4*100W |
حجم قابل للتوسيع: |
3400*3100*7000mm |
طلب: |
لمواقع البناء ، والطوارئ ، وعمليات التعدين ، والأحداث الخارجية ، والعمل على الطرق |
خاصية: |
تحقيق انبعاثات صفر ، عمليات خضراء منخفضة الضوضاء |
لوحة الطاقة الشمسية: |
3*380W ، السيليكون أحادي البلورة |
باتيري: |
4*200AH ، DC12V |
سارية: |
7m الكهربائية |
وحدة تحكم: |
MPPT 60A ، 95 ٪ |
قاد: |
4*100W |
حجم قابل للتوسيع: |
3400*3100*7000mm |
طلب: |
لمواقع البناء ، والطوارئ ، وعمليات التعدين ، والأحداث الخارجية ، والعمل على الطرق |
خاصية: |
تحقيق انبعاثات صفر ، عمليات خضراء منخفضة الضوضاء |

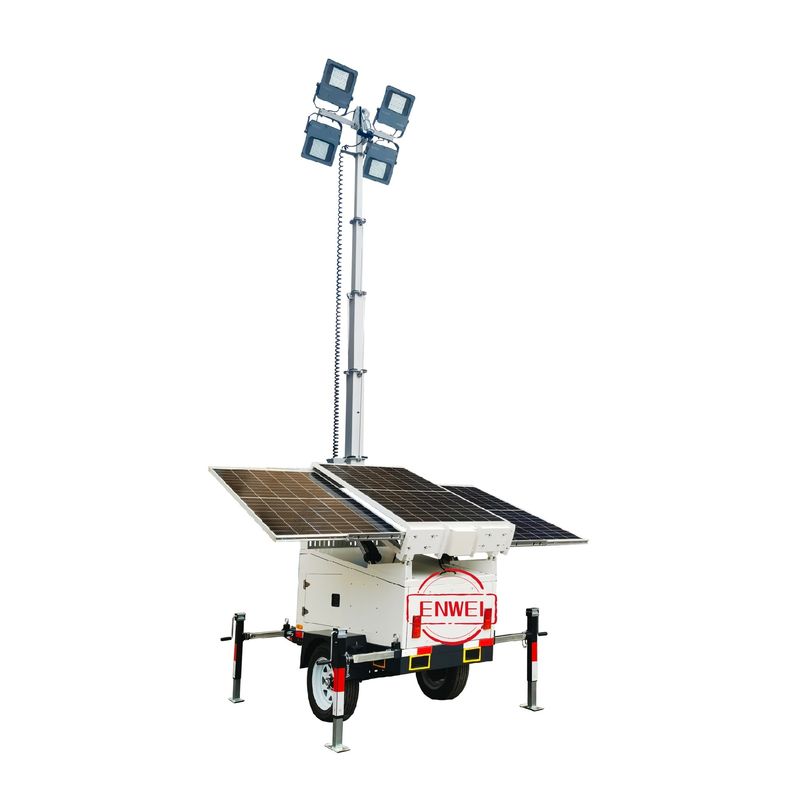

Solar Powered Light Trailer With 4x100W LED Floodlight For Outdoor Events
The solar light trailer is a multifunctional mobile lighthouse trailer that integrates solar power generation, an electric lift mast, and high-brightness LED lighting. Constructed from high-strength carbon steel with an electroplating and electrostatic spray coating, it offers excellent weather and corrosion resistance, making it suitable for a variety of outdoor and emergency lighting scenarios.
Core Advantages
3 x 380W monocrystalline silicon solar panels with electric adjustment from 0-65° for maximum solar energy absorption.
4 x 200Ah GEL battery packs provide stable energy storage and support long-term offline operation, making them suitable for environments with no or low power supply.
4×100W Philips LED lamps, each with a luminous flux of 160Lm/W and a color temperature of 4000-4500K, providing uniform and soft lighting effects.
7m mast features electric control, wind resistance up to 100 km/h, and is equipped with anti-tip chains and adjustable support legs.
Applications
Nighttime lighting for construction sites;
Emergency and rescue lighting;
Road and municipal maintenance lighting;
Nighttime lighting for farms.
Model 3380 solar light tower | |
Solar panels |
3*380W, Monocrystalline silicon |
Battery |
4*200 AH DC12V 9600wh |
Mast |
7m electric |
LED |
4*100W |
Controller |
MPPT 60A, 95% |
rated voltage |
DC 24V |
Inverter |
1000W |
Protection class |
IP65 |
Battery charging |
solar / city pwer supply |
Trailer |
R15 tires, 50mm ball/70mm ring,US standard, ball hitch, single axle, manual outrigger, 4 support legs, handbrake |
Loading Capacity |
1200kg |
Expandable size |
3400*3100*7000mm |
This product has passed CE certification...
Contact: Alaia
Email: enweimachinery002@126.com
Whatsapp:+86-15765360966
